Vòng bi tuyến tính tiêu chuẩn có bích LMF / LMK / LMH

Vòng bi tuyến tính tiêu chuẩn có bích LMF / LMK / LMH

Type	Mounting example	Flange type		Length
Standard Flanged Type		LMF		Single
		LMK		Single
		LMH		Single
Double-Wide Flanged Type		LMF…L		Double
		LMK…L		Double
		LMH…L		Double
Pilot Flanged Type		LMFP		Single
		LMKP		Single
		LMHP		Single
Double-Wide-Position-Pilot Flanged Type		LMFP…L		Double
		LMKP…L		Double
		LMHP…L		Double
Double-Wide-Middle Flanged Type		LMFM…L		Double
		LMKM…L		Double
		LMHM…L		Double
Flanged Stroke Bearing		LBHR LBHRW		Single
		LBHS LBHSW		Single
		LBHC LBHCW		Single



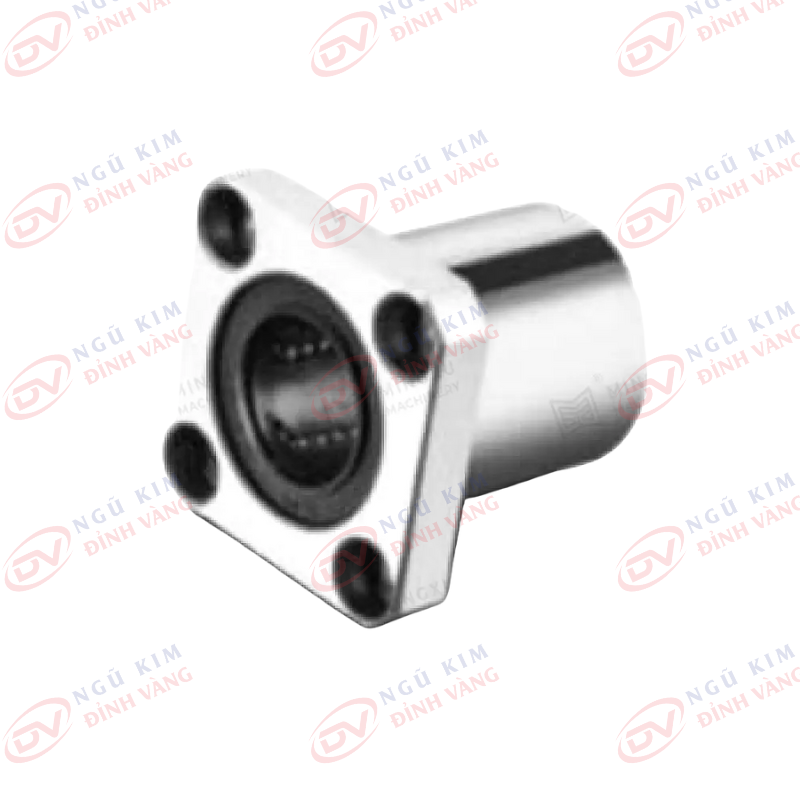

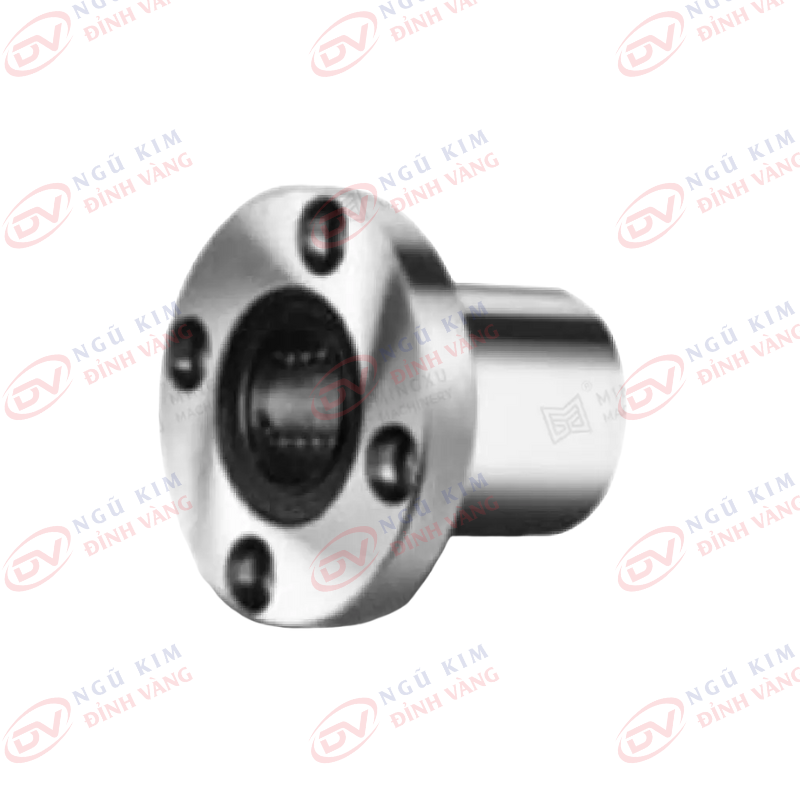

LMF(K)···UU (Resin retainer)

This type is a metric dimension series widely used in Asia and other countries.

All models can be done with nickle plated according to customers’requirements, with function of rust-proof.

Nominal shaft diameter mm	Resin retainer				Major dimensions and tolerance
	LMF···UU	Weight(g)	LMK …UU	Weight(g)	dr		D		L
					mm	Tolerance μm	mm	Tolerance μm	mm	Tolerance μm
5	LMF5UU	18	LMK5UU	13	5	0 -9	10	0 -11	15	±300
6	LMF6UU	24	LMK6UU	18	6		12		19
8	LMF8SUU	32	LMK8SUU	24	8		15		17
8	LMF8UU	37	LMK8UU	29	8		15		24
10	LMF10UU	72	LMK10UU	52	10		19	0 -13	29
12	LMF12UU	76	LMK12UU	57	12		21		30	0 -200
13	LMF13UU	88	LMK13UU	72	13		23		32
16	LMF16UU	120	LMK16UU	104	16		28		37
20	LMF20UU	180	LMK20UU	145	20	0 -10	32	0 -16	42
25	LMF25UU	340	LMK25UU	300	25		40		59	0 -300
30	LMF30UU	470	LMK30UU	375	30		45		64
35	LMF35UU	650	LMK35UU	560	35	0 -12	52	0 -19	70
40	LMF40UU	1,060	LMK40UU	880	40		60		80
50	LMF50UU	2,200	LMK50UU	2,000	50		80		100
60	LMF60UU	3,000	LMK60UU	2,560	60	0 -15	90	0 -22	110
80	LMF80UU	5,800	LMK80UU	5,300	80		120		140	0 -400
100	LMF100UU	10,600	LMK100UU	9,900	100	0 -20	150	0 -25	175

Major dimensions and tolerance							Eccentricity μm	Squareness μm	Basic load rating
Flange
Df mm	k mm	t mm	Dp mm	X mm	Y mm	Z mm			Dynamic C N	Static Co N
26	21	5	18	3.5	6	3.1	12	12	167	206
28	22	5	20	3.5	6	3.1			206	265
32	25	5	24	3.5	6	3.1			176	216
32	25	5	24	3.5	6	3.1			274	392
40	30	6	29	4.5	7.5	4.1			372	549
42	32	6	32	4.5	7.5	4.1			510	784
43	34	6	33	4.5	7.5	4.1			510	784
48	37	6	38	4.5	7.5	4.1			774	1,180
54	42	8	43	5.5	9	5.1	15	15	882	1,370
62	50	8	51	5.5	9	5.1			980	1,570
74	58	10	60	6.6	11	6.1			1,570	2,740
82	64	10	67	6.6	11	6.1	20	20	1,670	3,140
96	75	13	78	9	14	8.1			2,160	4,020
116	92	13	98	9	14	8.1			3,820	7,940
134	106	18	112	11	17	11.1	25	25	4,700	10,000
164	136	18	142	11	17	11.1			7,350	16,000
200	170	20	175	14	20	13.1	30	30	14,100	34,800





LMF(K)···GA (High-temperature Resistant Retainer)

This type is a metric dimension series widely used in Asia and other countries.

All models can be done with nickle plated according to customers’ requirements, with function of rust-proof.

Nominal shaft diameter mm	Resin retainer				Major dimensions and tolerance
	LMF···GA	Weight (g)	LMK···GA	Weight (g)	dr		D		L
					mm	Tolerance μm	mm	Tolerance μm	mm	Tolerance μm
5	LMF5GA	19.5	LMK5GA	14.5	5	0 -9	10	0 -11	15	± 300
6	LMF6GA	25.3	LMK6GA	19.3	6		12		19
8	LMF8GA	39.3	LMK8GA	31.3	8		15		24
10	LMF10GA	74.5	LMK10GA	54.5	10		19	0 -13	29
12	LMF12GA	81.2	LMK12GA	62.2	12		21		30	0 -200
13	LMF13GA	95	LMK13GA	79	13		23		32
16	LMF16GA	137	LMK16GA	121	16		28		37
20	LMF20GA	205	LMK20GA	170	20	0 -10	32	0 -16	42
25	LMF25GA	402	LMK25GA	362	25		40		59	0 -300
30	LMF30GA	546	LMK30GA	451	30		45		64
35	LMF35GA	749	LMK35GA	659	35	0 -12	52	0 -19	70
40	LMF40GA	1,205	LMK40GA	1,025	40		60		80
50	LMF50GA	2,200	LMK50GA	2,000	50		80		100	0 -400
60	LMF60GA	3,000	LMK60GA	2,560	60	0 -15	90	0 -22	110
80	LMF80GA	5,800	LMK80GA	5,300	80		120		140
100	LMF100GA	10,600	LMK100GA	9,900	100	0 -20	150	0 -25	175

Major dimensions and tolerance							Eccentricity μm	Squareness μm	Basic load rating
Flange
Df mm	K mm	t mm	Dp mm	X mm	Y mm	Z mm			Dynamic C N	Static Co N
26	21	5	17	3.5	6	3.1	12	12	167	206
28	22	5	20	3.5	6	3.1			206	265
32	25	5	24	3.5	6	3.1			274	392
40	30	6	29	4.5	7.5	4.1			372	549
42	32	6	32	4.5	7.5	4.1			510	784
43	34	6	33	4.5	7.5	4.1			510	784
48	37	6	38	4.5	7.5	4.1			774	1.180
54	42	8	43	5.5	9	5.1	15	15	882	1,370
62	50	8	51	5.5	9	5.1			980	1,570
74	58	10	60	6.6	11	6.1			1,570	2,740
82	64	10	67	6.6	11	6.1	20	20	1,670	3,140
96	75	13	78	9	14	8.1			2,160	4,020
116	92	13	98	9	14	8.1			3,820	7,940
134	106	18	112	11	17	11.1	25	25	4,700	10,000
164	136	18	142	11	17	11.1			7,350	16,000
200	170	20	175	14	20	13.1	30	30	14,100	34,800





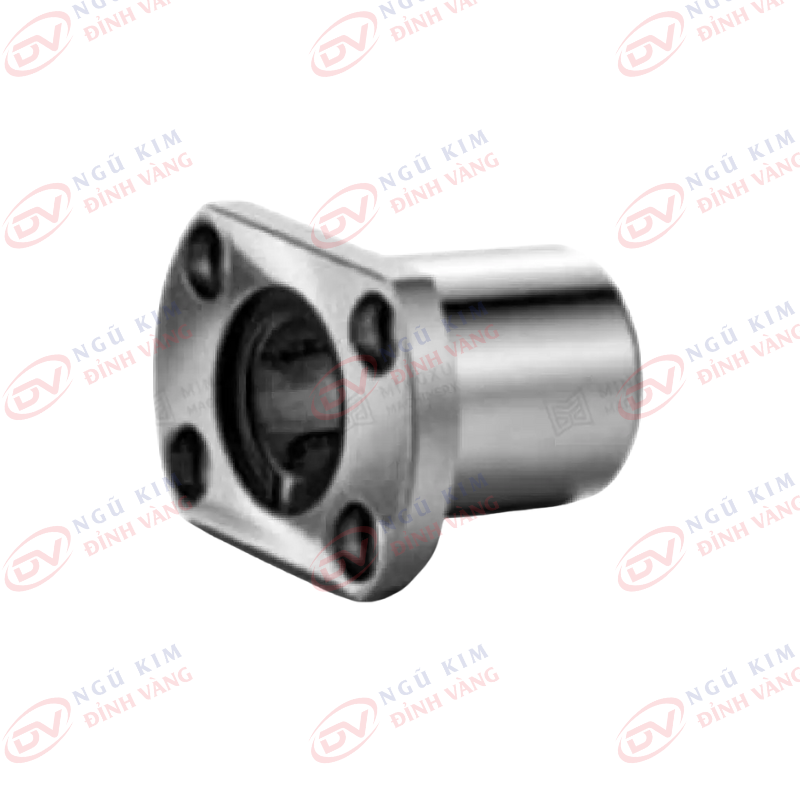

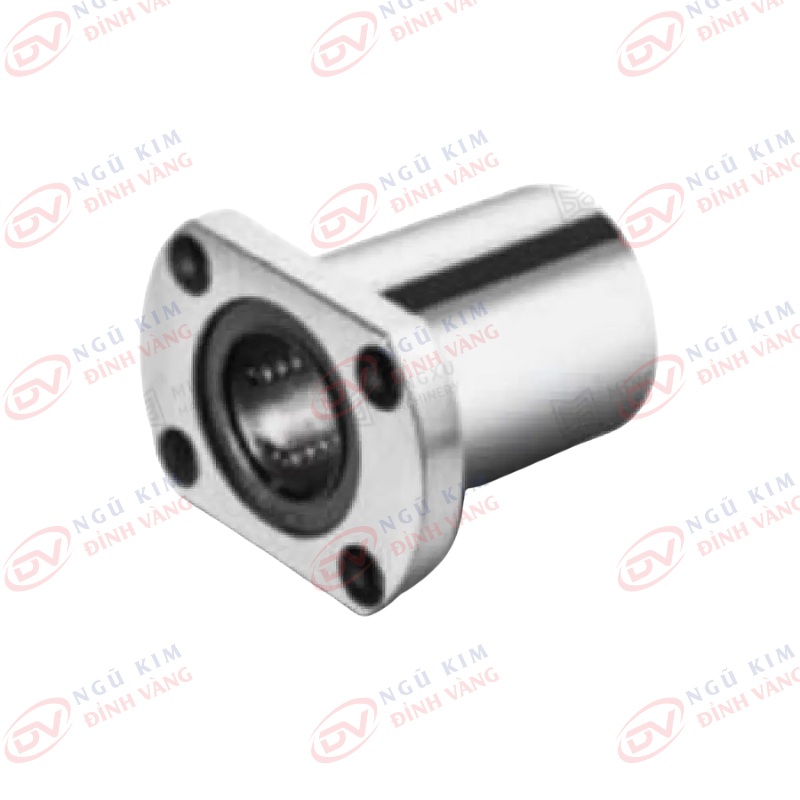

LMH···UU (Resin retainer)

This type is a metric dimension series widely used in Asia and other countries.

All models can be done with nickle plated according to customers’ requirements, with function of rust-proof.

Nominal shaft diameter mm	LMH···UU	Weight (g)	Major dimensions and tolerance
			dr		D		L
			mm	Tolerance μm	mm	Tolerance μm	mm	Tolerance μm
5	LMH5UU	15	5	0 -9	10	0 -11	15	±300
6	LMH6UU	21	6		12		19
8	LMH8UU	33	8		15		24
10	LMH10UU	64	10		19	0 -13	29
12	LMH12UU	68	12		21		30
13	LMH13UU	81	13		23		32	0 -200
16	LMH16UU	112	16		28		37
20	LMH20UU	167	20	0 -10	32	0 -16	42
25	LMH25UU	325	25		40		59	0 -300
30	LMH30UU	388	30		45		64
35	LMH35UU	580	35	0 -12	52	0 -19	70
40	LMH40UU	920	40		60		80
50	LMH50UU	2,000	50		80		100
60	LMH60UU	2,560	60		90		110

Major dimensions and tolerance								Eccentricity μm	Squareness μm	Basic load rating
Flange
Df mm	W mm	t mm	A mm	F mm	X mm	Y mm	Z mm			Dynamic C N	Static CoN
26	16	5	17	—	3.5	6	3.1	12	12	167	206
28	18	5	20	—	3.5	6	3.1			206	265
32	21	5	24	一	3.5	6	3.1			274	392
40	25	6	29	—	4.5	7.5	4.1			372	549
42	27	6	32	—	4.5	7.5	4.1			510	784
43	29	6	33	—	4.5	7.5	4.1			510	784
48	34	6	31	22	4.5	7.5	4.1			774	1,180
54	38	8	36	24	5.5	9	5.1	15	15	882	1,370
62	46	8	40	32	5.5	9	5.1			980	1,570
74	51	10	49	35	6.6	11	6.1			1,570	2,740
82	58	10	55	38	6.6	11	6.1	20	20	1.670	3,140
96	66	13	64	45	9	14	8.1			2,160	4,020
116	86	13	80	56	9	14	8.1			3,820	7,920
134	96	18	84	74	11	17	11.1			4.700	10,000
